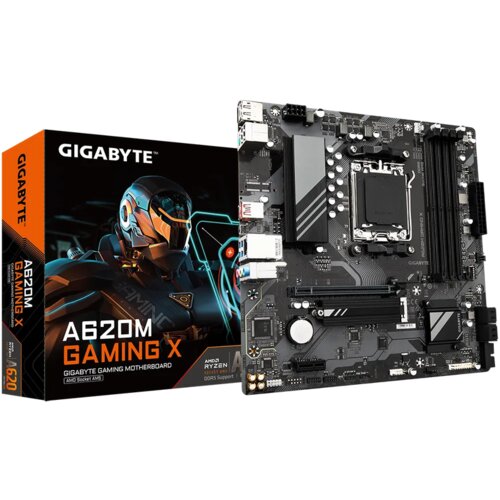

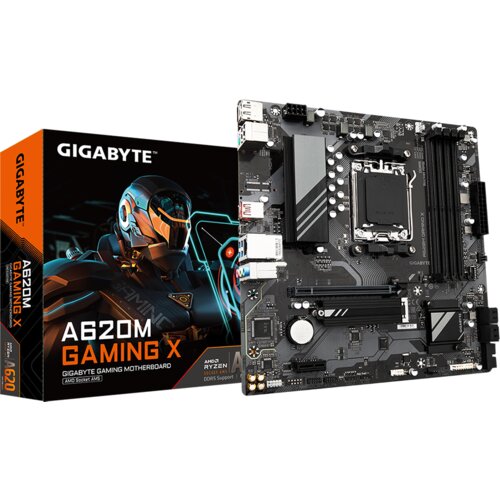

Gigabyte A620M GAMING X Motherboard - Supports AMD Ryzen 8000 CPUs, 8+2+1 Phases Digital VRM, up to 8000MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2 cijene

Technical details
Warranty period: 3 year(s)

Processor
Maximum internal memory supported by processor: 192 GB
Compatible processor series: AMD Ryzen 9 7th Gen, AMD Ryzen 7 7th Gen, AMD Ryzen 5
Processor manufacturer: AMD
Processor socket: Socket AM5
Supported processor sockets: Socket AM5

Graphics
Maximum resolution: 4096 x 2160 pixels
DirectX version: 12.0
HDCP: Yes
Parallel processing technology support: Not supported

Features
Motherboard chipset family: AMD
Audio output channels: 7.1 channels
PC health monitoring: Temperature, Water cooling, Voltage, Fan
Product colour: Bronze
Motherboard chipset: AMD A620
Motherboard form factor: micro ATX
Windows operating systems supported: Windows 10 x64, Windows 11 x64

Memory
Supported memory module capacities: 48GB, 12GB, 32GB, 8GB, 2GB, 4GB, 1GB, 16GB
Memory slots type: DIMM
Supported memory clock speeds: 8000 MHz, 7600, 7800, 6000, 6800, 5200, 7000, 6400, 4400, 6200, 4800, 5600, 7200
Maximum internal memory: 192 GB
Supported memory types: DDR5SDRAM
Unbuffered memory: Yes
Number of memory slots: 4
Supported memory clock speed (max): 8000 MHz
Memory channels: Dualchannel

Weight & dimensions
Height: 35 mm
Depth: 244 mm
Width: 244 mm

Network
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes
WiFi: No

Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
ATX Power connector (24pin): Yes
RGB LED pin header: Yes
Number of SATA III connectors: 4
12V power connector: Yes
USB 2.0 connectors: 1
Front panel audio connector: Yes
EPS power connector (8pin): Yes
TPM connector: Yes
CPU fan connector: Yes
Front panel connector: Yes
Total number of SATA connectors: 4

BIOS
Desktop Management Interface (DMI) version: 2.7
BIOS type: UEFI AMI
Clear CMOS jumper: Yes

Packaging data
Package weight: 892 g
Package width: 270 mm
Package depth: 268 mm
Package height: 68 mm
Bundled software: Norton Internet Security

Packaging content
Cables included: SATA
Batteries included: Yes

Storage controllers
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
Number of HDDs supported: 4
Supported storage drive types: HDD & SSD
RAID levels: 1, 10, 0
Number of storage drives supported: 5

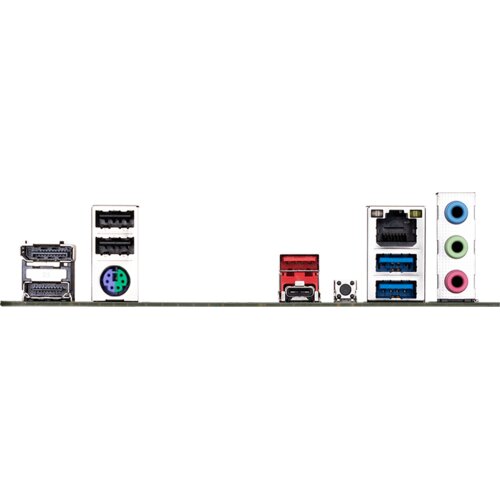

Rear panel I/O ports
USB 2.0 ports quantity: 2
Ethernet LAN (RJ45) ports: 1
USB connector type: USB TypeC, USB TypeA
USB 3.2 Gen 1 (3.1 Gen 1) TypeC ports quantity: 1
DisplayPorts quantity: 1
DisplayPort version: 1.4
Headphone outputs: 3
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) TypeA ports quantity: 1
Microphone in: Yes
PS/2 ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1

Expansion slots
PCI Express x16 slots: 1
PCI Express x1 slots: 1
Number of M.2 (M) slots: 1

Battery
Number of battery cells: 1
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Battery type: CR2032
Battery technology: LithiumManganese Dioxide (LiMnO2)

Logistics data
Products per shipping (inner) case: 1 pc(s)
Country of origin: China
