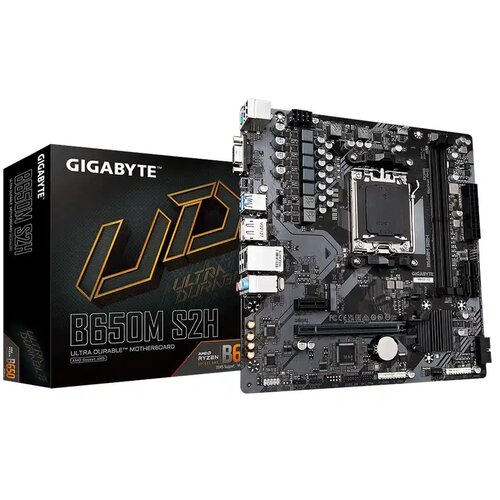

Gigabyte B650M S2H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 6400MHz DDR5, 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1

Technical details
Warranty period: 3 year(s)

Processor
Compatible processor series: AMD Ryzen 9 7th Gen, AMD Ryzen 7 7th Gen, AMD Ryzen 5 7th Gen
Supported processor sockets: Socket AM5
Maximum internal memory supported by processor: 96 GB
Processor socket: Socket AM5
Processor manufacturer: AMD

Graphics
HDCP: Yes
DirectX version: 12.0
Parallel processing technology support: Not supported
Maximum resolution: 4096 x 2160 pixels
Number of displays supported: 3

Features
Motherboard chipset: AMD B650
Audio output channels: 7.1 channels
PC health monitoring: Fan, Water cooling, Voltage, Temperature
Product colour: Bronze
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Motherboard form factor: micro ATX
Motherboard chipset family: AMD

Memory
Supported memory clock speeds: 4400, 4800, 5200, 6400 MHz, 6000, 6200, 5600
Unbuffered memory: Yes
Maximum internal memory: 96 GB
Memory slots type: DIMM
Supported memory types: DDR5SDRAM
Number of memory slots: 2
Memory channels: Dualchannel
Supported memory clock speed (max): 6200 MHz

Weight & dimensions
Width: 230 mm
Depth: 225 mm
Height: 35 mm

Network
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes
WiFi: No

Internal I/O
RGB LED pin header: Yes
Total number of SATA connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 2.0 connectors: 2
12V power connector: Yes
Number of SATA III connectors: 4
Front panel audio connector: Yes
EPS power connector (8pin): Yes
TPM connector: Yes
CPU fan connector: Yes
Front panel connector: Yes
ATX Power connector (24pin): Yes

BIOS
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7

Packaging data
Package weight: 917 g
Package height: 54 mm
Package depth: 265 mm
Package width: 265 mm
Bundled software: Norton Internet Security

Packaging content
Cables included: SATA
Batteries included: Yes

Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
RAID levels: 10, 1, 0
Number of storage drives supported: 5
Number of HDDs supported: 4
RAID support: Yes

Rear panel I/O ports
VGA (DSub) ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 2
DisplayPorts quantity: 1
HDMI ports quantity: 1
USB 2.0 ports quantity: 4
USB connector type: USB TypeA
DisplayPort version: 1.4
Microphone in: Yes
HDMI version: 2.1
PS/2 ports quantity: 1
Ethernet LAN (RJ45) ports: 1
Headphone outputs: 3

Expansion slots
PCI Express x16 slots: 1
Number of M.2 (M) slots: 1
PCI Express x1 slots: 1

Battery
Battery weight: 3 g
Battery technology: LithiumManganese Dioxide (LiMnO2)
Battery type: CR2032
Number of battery cells: 1
Lithium weight per battery: 0.07 g

Logistics data
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
