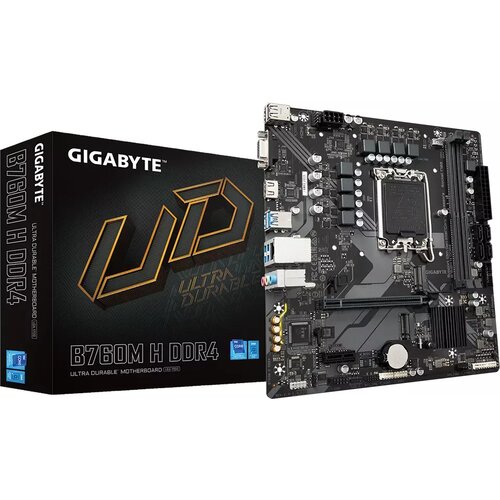

Gigabyte B760M H DDR4 (rev. 1.0) Intel B760 Express LGA 1700 micro ATX

Processor
Processor manufacturer: Intel
Compatible processor series: Intel Pentium Gold, Intel Celeron
Processor socket: LGA 1700
Supported processor sockets: LGA 1700
Maximum number of SMP processors: 1

Features
Power source type: ATX
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 10, Windows 11
Motherboard chipset: Intel B760 Express
Audio chip: Realtek ALC897
Motherboard chipset family: Intel
Motherboard form factor: micro ATX

Memory
Memory slots type: DIMM
Supported memory types: DDR4SDRAM
Memory channels: Dualchannel
Maximum internal memory: 64 GB
Supported memory clock speeds: 2400, 3200 MHz, 2666, 3000, 2933, 2133
Number of memory slots: 2
Supported memory clock speed (max): 3200 MHz

Weight & dimensions
Width: 230 mm
Depth: 215 mm

Network
Ethernet LAN: Yes
WiFi: No
Ethernet interface type: Gigabit Ethernet

Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Front panel connector: Yes
CPU fan connector: Yes
Number of SATA III connectors: 4
ATX Power connector (24pin): Yes
EPS power connector (8pin): Yes
Front panel audio connector: Yes
TPM connector: Yes
Serial port headers: 1
RGB LED pin header: Yes
USB 2.0 connectors: 2

BIOS
Desktop Management Interface (DMI) version: 2.7
BIOS type: UEFI AMI
Clear CMOS jumper: Yes

Storage controllers
RAID levels: 5, 1, 0, 10
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports
HDMI version: 1.4
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 4
DisplayPorts quantity: 1
Ethernet LAN (RJ45) ports: 1
DisplayPort version: 1.4
HDMI ports quantity: 1
VGA (DSub) ports quantity: 1

Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
