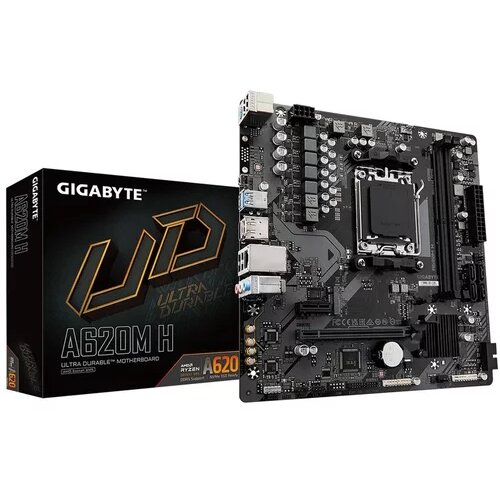

Gigabyte A620M H (A620,AM5,mATX,DDR5)

Technical details
Warranty period: 3 year(s)

Processor
Supported processor sockets: Socket AM5
Compatible processor series: AMD Ryzen 9 7th Gen, AMD Ryzen 5, AMD Ryzen 7 7th Gen
Processor manufacturer: AMD
Maximum internal memory supported by processor: 96 GB
Processor socket: Socket AM5

Graphics
Parallel processing technology support: Not supported
DirectX version: 12.0
Maximum resolution: 4096 x 2160 pixels
HDCP: Yes

Features
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 11 x64, Windows 10 x64
PC health monitoring: Water cooling, Voltage, Fan, Temperature
Motherboard chipset: AMD A620
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Product colour: Bronze

Memory
Supported memory clock speed (max): 7200 MHz
Memory channels: Dualchannel
Supported memory clock speeds: 5200, 4800, 6200, 6800, 6000, 4400, 6400 MHz, 5600, 7200 MHz
Unbuffered memory: Yes
Memory slots type: DIMM
Supported memory types: DDR5SDRAM
Number of memory slots: 2
Maximum internal memory: 96 GB
Supported memory module capacities: 48GB, 12GB, 8GB, 1GB, 32GB, 16GB, 2GB, 4GB

Weight & dimensions
Width: 230 mm
Height: 35 mm
Depth: 225 mm

Network
Ethernet LAN: Yes
WiFi: No
Ethernet interface type: Gigabit Ethernet

Internal I/O
EPS power connector (8pin): Yes
Front panel audio connector: Yes
12V power connector: Yes
Total number of SATA connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 2.0 connectors: 2
RGB LED pin header: Yes
Number of SATA III connectors: 4
Front panel connector: Yes
CPU fan connector: Yes
TPM connector: Yes
ATX Power connector (24pin): Yes

BIOS
BIOS type: UEFI AMI
Desktop Management Interface (DMI) version: 2.7
Clear CMOS jumper: Yes

Packaging data
Package height: 54 mm
Package width: 265 mm
Package weight: 897 g
Package depth: 265 mm
Bundled software: Norton Internet Security LAN bandwidth management software

Packaging content
Cables included: SATA
Batteries included: Yes

Storage controllers
RAID levels: 10, 1, 0
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Supported storage drive types: HDD & SSD
Number of storage drives supported: 5
RAID support: Yes

Rear panel I/O ports
USB connector type: USB TypeA, USB TypeC
PS/2 ports quantity: 1
USB 2.0 ports quantity: 4
DisplayPorts quantity: 1
HDMI version: 2.1
HDMI ports quantity: 1
Microphone in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 2
Ethernet LAN (RJ45) ports: 1
Headphone outputs: 3
DisplayPort version: 1.4

Expansion slots
PCI Express x16 slots: 1
Number of M.2 (M) slots: 1
PCI Express x1 slots: 1

Battery
Lithium weight per battery: 0.07 g
Battery technology: LithiumManganese Dioxide (LiMnO2)
Battery type: CR2032
Battery weight: 3 g
Number of battery cells: 1

Logistics data
Products per shipping (inner) case: 1 pc(s)
Country of origin: China
