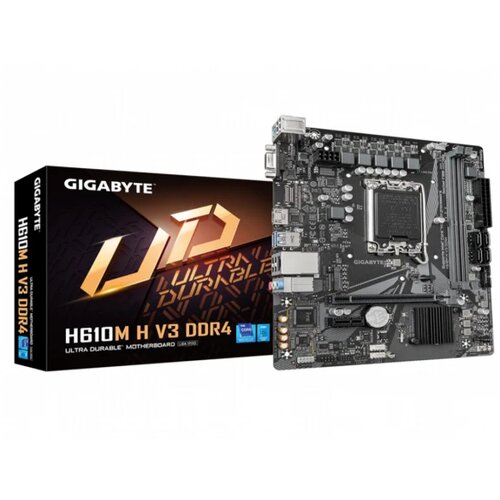

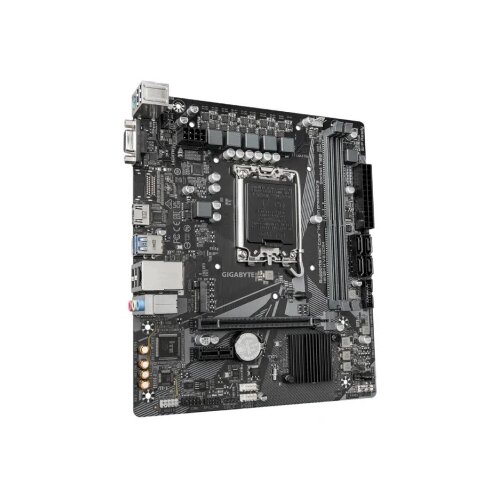

Gigabyte H610M H V3 DDR4 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1

Technical details
Warranty period: 3 year(s)

Processor
Compatible processor series: Intel Core i3, Intel Core i5, Intel Celeron, Intel Core i7, Intel Core i9, Intel Pentium Gold
Supported processor sockets: LGA 1700
Processor manufacturer: Intel
Processor socket: LGA 1700

Graphics
Graphics card family: Intel
Parallel processing technology support: Not supported
Graphics card: HD Graphics
Maximum resolution: 4096 x 2304 pixels
HDCP: Yes

Features
Power source type: ATX
Cooling type: Active
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Motherboard chipset family: Intel
Motherboard form factor: micro ATX
Audio output channels: 7.1 channels
PC health monitoring: Voltage, Fan, Temperature, Water cooling
Motherboard chipset: Intel H610 Express
Product colour: Black
Audio chip: Realtek ALC897

Memory
Memory channels: Dualchannel
Memory slots type: DIMM
Supported memory types: DDR4SDRAM
Number of memory slots: 2
Supported memory clock speed (max): 3200 MHz
Supported memory clock speeds: 3000, 2933, 3200 MHz, 2666, 2400, 2133
Maximum internal memory: 64 GB
Supported memory module capacities: 2GB, 4GB, 12GB, 16GB, 8GB, 1GB, 32GB
Unbuffered memory: Yes

Weight & dimensions
Width: 230 mm
Depth: 215 mm
Height: 35 mm

Network
WiFi: No
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet

Internal I/O
RGB LED pin header: Yes
12V power connector: Yes
EPS power connector (8pin): Yes
USB 2.0 connectors: 2
Serial port headers: 1
Front panel audio connector: Yes
Number of SATA III connectors: 4
ATX Power connector (24pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
CPU fan connector: Yes
Front panel connector: Yes
TPM connector: Yes

BIOS
Desktop Management Interface (DMI) version: 2.7
Clear CMOS button: Yes
BIOS type: UEFI AMI
Clear CMOS jumper: Yes

Packaging data
Package weight: 684 g
Package width: 265 mm
Package depth: 235 mm
Package height: 52 mm
Bundled software: Norton Internet Security (OEM version) LAN bandwidth management software

Packaging content
Cables included: SATA
Batteries included: Yes

Storage controllers
Number of storage drives supported: 5
Number of HDDs supported: 1
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD

Rear panel I/O ports
Microphone in: Yes
HDMI ports quantity: 1
USB connector type: USB TypeA
Ethernet LAN (RJ45) ports: 1
USB 2.0 ports quantity: 4
PS/2 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 2
DisplayPorts quantity: 2
DVID ports quantity: 1
Headphone outputs: 3
VGA (DSub) ports quantity: 1

Expansion slots
Number of M.2 (M) slots: 1
PCI Express x1 slots: 1
PCI Express x16 slots: 1

Battery
Battery weight: 3 g
Battery technology: LithiumManganese Dioxide (LiMnO2)
Battery type: CR2032
Number of battery cells: 1
Lithium weight per battery: 0.07 g

Logistics data
Products per shipping (inner) case: 1 pc(s)
Country of origin: China
