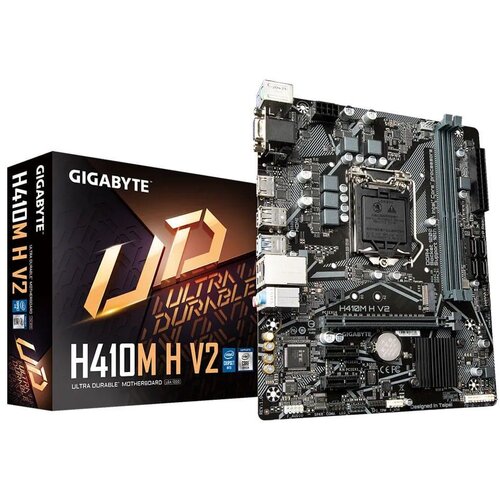

Gigabyte H410M H V2 Motherboard - Supports Intel Core 10th CPUs, up to 2933MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1

Technical details
Warranty period: 3 year(s)

Processor
Compatible processor series: Intel Core i3, Intel Core i7, Intel Core i9, Intel Core i5, Intel Celeron, Intel Pentium
Processor manufacturer: Intel
Supported processor sockets: LGA 1200 (Socket H5)
Maximum internal memory supported by processor: 64 GB
Processor socket: LGA 1200 (Socket H5)

Graphics
DirectX version: 12.0

Features
Audio output channels: 7.1 channels
Power source type: ATX
PC health monitoring: Voltage, CPU, Fan, Temperature
Motherboard chipset: Intel H410
Product colour: Bronze
Windows operating systems supported: Windows 10, Windows 11 x64
Motherboard form factor: micro ATX
Motherboard chipset family: Intel

Memory
Supported memory module capacities: 8GB, 12GB, 16GB, 1GB, 32GB, 2GB, 4GB
Supported memory clock speeds: 2666, 2400, 2933, 2133
Maximum internal memory: 64 GB
Unbuffered memory: Yes
Memory slots type: DIMM
Supported memory types: DDR4SDRAM
Number of memory slots: 2
Supported memory clock speed (max): 2933 MHz
Memory channels: Dualchannel

Weight & dimensions
Depth: 185 mm
Width: 226 mm
Height: 35 mm

Network
Ethernet LAN: Yes
WiFi: No
Ethernet interface type: Gigabit Ethernet

Internal I/O
Audio connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Power fan connector: Yes
Total number of SATA connectors: 4
USB 2.0 connectors: 1
EPS power connector (8pin): Yes
Number of SATA III connectors: 4
CPU fan connector: Yes
Front panel connector: Yes
Front panel audio connector: Yes
ATX Power connector (24pin): Yes
12V power connector: Yes

BIOS
Clear CMOS button: Yes
BIOS type: UEFI

Packaging data
Package depth: 235 mm
Package height: 52 mm
Package width: 265 mm
Package weight: 728 g
Bundled software: Norton Internet Security (OEM version) cFosSpeed

Packaging content
Batteries included: Yes

Storage controllers
RAID levels: 10, 0, 1, 5
RAID support: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III
Number of storage drives supported: 5
Number of HDDs supported: 4

Rear panel I/O ports
VGA (DSub) ports quantity: 1
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 2
HDMI ports quantity: 1
Ethernet LAN (RJ45) ports: 1
PS/2 ports quantity: 1

Expansion slots
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 1
PCI Express x1 slots: 2

Battery
Lithium weight per battery: 0.07 g
Battery technology: LithiumManganese Dioxide (LiMnO2)
Battery type: CR2032
Number of battery cells: 1
Battery weight: 3 g

Logistics data
Country of origin: China
Harmonized System (HS) code: 84733020
Products per shipping (inner) case: 1 pc(s)
