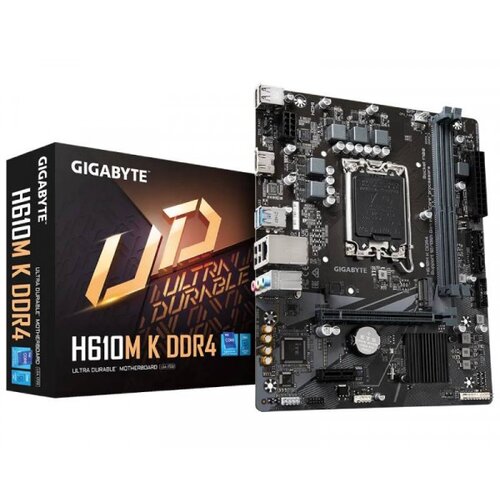

Gigabyte H610M K DDR4 1.0 motherboard Intel H610 Express LGA 1700 micro ATX

Processor
Processor socket: LGA 1700
Compatible processor series: Intel Core i7, Intel Core i9, Intel Pentium Gold, Intel Celeron, Intel Core i3
Processor manufacturer: Intel

Graphics
Graphics card family: Intel
Maximum resolution: 4096 x 2160 pixels
HDCP: Yes
Graphics card: HD Graphics
Onboard graphics card: Yes

Features
Power source type: ATX
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Cooling type: Active
Motherboard chipset: Intel H610 Express
PC health monitoring: Voltage, Temperature, Water cooling, Fan
Audio output channels: 7.1 channels
Motherboard form factor: micro ATX
Motherboard chipset family: Intel

Memory
Supported memory clock speeds: 2133, 2400, 2933, 3200 MHz, 3000, 2666
Memory channels: Dualchannel
Supported memory module capacities: 32GB
Supported memory clock speed (max): 3200 MHz
Supported memory types: DDR4SDRAM
Memory slots type: DIMM
Maximum internal memory: 64 GB
Number of memory slots: 2

Weight & dimensions
Depth: 185 mm
Width: 226 mm

Network
WiFi: No
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet

Internal I/O
USB 2.0 connectors: 1
Front panel connector: Yes
Power fan connector: Yes
Front panel audio connector: Yes
Number of SATA III connectors: 2
CPU fan connector: Yes
TPM connector: Yes
Audio connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
ATX Power connector (24pin): Yes
12V power connector: Yes

BIOS
Clear CMOS button: Yes
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
BIOS type: UEFI AMI

Storage controllers
Supported storage drive interfaces: M.2, PCI Express 3.0, SATA
Number of storage drives supported: 1

Rear panel I/O ports
HDMI ports quantity: 1
Headphone outputs: 1
Ethernet LAN (RJ45) ports: 1
USB 2.0 ports quantity: 4
Microphone in: No
Linein: Yes
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 2

Expansion slots
PCI slots: 1
