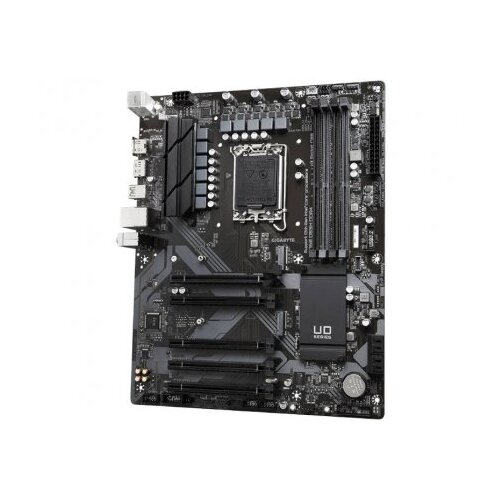

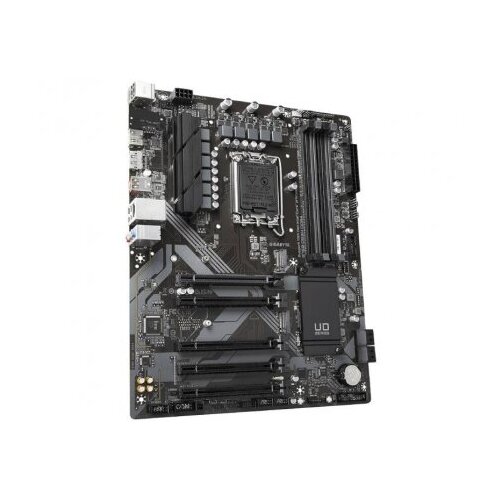

Gigabyte B760 DS3H DDR4 Motherboard - Supports Intel Core 14th CPUs, 18+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2

Technical details
Warranty period: 3 year(s)

Processor
Maximum internal memory supported by processor: 128 GB
Supported processor sockets: LGA 1700
Processor socket: LGA 1700
Compatible processor series: Intel Core i5, Intel Celeron, Intel Core i3, Intel Core i7, Intel Core i9, Intel Pentium Gold
Processor manufacturer: Intel

Graphics
DirectX version: 12.0
HDCP: Yes
Parallel processing technology support: Not supported
Maximum resolution: 4096 x 2304 pixels

Features
Motherboard chipset: Intel B760 Express
Audio output channels: 7.1 channels
PC health monitoring: Temperature, Voltage, Water cooling, Fan
Motherboard form factor: ATX
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Motherboard chipset family: Intel

Memory
Supported memory module capacities: 32GB, 12GB, 16GB, 2GB, 4GB, 1GB, 8GB
Supported memory clock speeds: 3800, 3333, 3200 MHz, 2666, 4133 MHz, 4000, 2400, 3000, 2133, 2933, 3600, 3300, 3733, 4300, 4400, 5000, 3666, 4800, 4933, 4500, 3400, 3866, 4700, 5133, 4266, 3466, 5333 MHz, 4600
Maximum internal memory: 128 GB
Memory slots type: DIMM
Supported memory types: DDR4SDRAM
Number of memory slots: 4
Unbuffered memory: Yes
Supported memory clock speed (max): 5333 MHz
Memory channels: Dualchannel

Weight & dimensions
Depth: 244 mm
Height: 35 mm
Width: 305 mm

Network
Ethernet LAN: Yes
WiFi: No
Ethernet interface type: Gigabit Ethernet

Internal I/O
RGB LED pin header: Yes
S/PDIF out connector: Yes
12V power connector: Yes
Number of SATA III connectors: 4
EPS power connector (8pin): Yes
Front panel audio connector: Yes
CPU fan connector: Yes
Serial port headers: 1
USB 2.0 connectors: 2
ATX Power connector (24pin): Yes
Front panel connector: Yes
TPM connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Total number of SATA connectors: 4

BIOS
Desktop Management Interface (DMI) version: 2.7
BIOS type: UEFI AMI
Clear CMOS jumper: Yes

Packaging data
Package height: 80 mm
Package weight: 1.31 kg
Package depth: 270 mm
Package width: 335 mm
Bundled software: Norton Internet Security

Packaging content
Cables included: SATA
Batteries included: Yes

Storage controllers
Number of HDDs supported: 4
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
RAID support: Yes
RAID levels: 0, 10, 1, 5
Number of storage drives supported: 6

Rear panel I/O ports
USB 3.2 Gen 2x2 TypeC ports quantity: 1
DisplayPorts quantity: 1
DisplayPort version: 1.2
Microphone in: Yes
Ethernet LAN (RJ45) ports: 1
PS/2 ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.0
USB 2.0 ports quantity: 4
USB connector type: USB TypeA, USB TypeC
USB 3.2 Gen 2 (3.1 Gen 2) TypeA ports quantity: 1
Headphone outputs: 3

Expansion slots
PCI Express x16 slots: 5
Number of M.2 (M) slots: 2

Battery
Battery weight: 3 g
Number of battery cells: 1
Lithium weight per battery: 0.07 g
Battery technology: LithiumManganese Dioxide (LiMnO2)
Battery type: CR2032

Logistics data
Products per shipping (inner) case: 1 pc(s)
Country of origin: China
