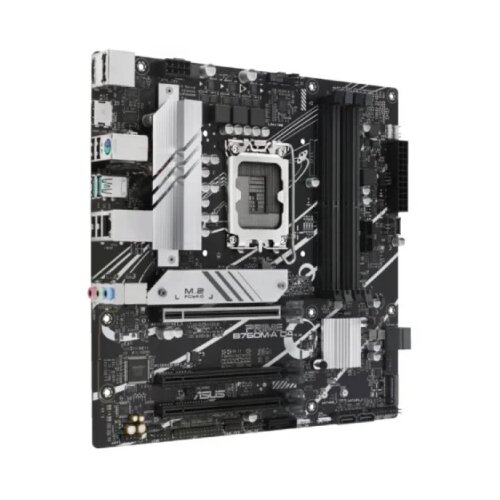

Asus PRIME B760M-A D4-CSM Intel B760 LGA 1700 micro ATX

Processor
Supported processor sockets: LGA 1700
Compatible processor series: Intel Core i3, Intel Core i7, Intel Core i9, Intel Pentium Gold, Intel Core i5, Intel Celeron
Processor manufacturer: Intel
Processor socket: LGA 1700

Graphics
Parallel processing technology support: Not supported

Features
Audio output channels: 7.1 channels
Motherboard form factor: micro ATX
Motherboard chipset: Intel B760
Motherboard chipset family: Intel
Windows operating systems supported: Windows 11, Windows 10 x64

Memory
Supported memory clock speeds: 3400, 3333, 4000, 4800, 2400, 2800, 5066, 3000, 5333 MHz, 3200 MHz, 2666, 4266, 2933, 3600, 3733, 4400, 5000, 3466, 2133, 4600
Maximum internal memory: 128 GB
Unbuffered memory: Yes
Number of memory slots: 4
Supported memory types: DDR4SDRAM
Memory channels: Dualchannel
Memory slots type: DIMM
Supported memory clock speed (max): 5333 MHz

Weight & dimensions
Depth: 244 mm
Width: 244 mm

Network
WiFi: No
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes

Internal I/O
USB 2.0 connectors: 2
Number of SATA III connectors: 4
Number of chassis fan connectors: 2
ATX Power connector (24pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3
S/PDIF out connector: Yes
CPU fan connector: Yes
Front panel audio connector: Yes
EPS power connector (8pin): Yes
12V power connector: Yes
Number of COM connectors: 1
TPM connector: Yes
RGB LED pin header: Yes

BIOS
BIOS type: UEFI AMI

Packaging content
Cables included: SATA

Storage controllers
Supported storage drive interfaces: M.2, SATA III
RAID levels: 5, 10, 1, 0
RAID support: Yes
Supported storage drive types: HDD & SSD
Number of storage drives supported: 6

Rear panel I/O ports
Ethernet LAN (RJ45) ports: 1
DisplayPort version: 1.4
DisplayPorts quantity: 1
USB 2.0 ports quantity: 4
Microphone in: Yes
PS/2 ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) TypeA ports quantity: 2
Headphone outputs: 3
HDMI ports quantity: 2
HDMI version: 2.1

Expansion slots
Number of M.2 (M) slots: 2
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 3
