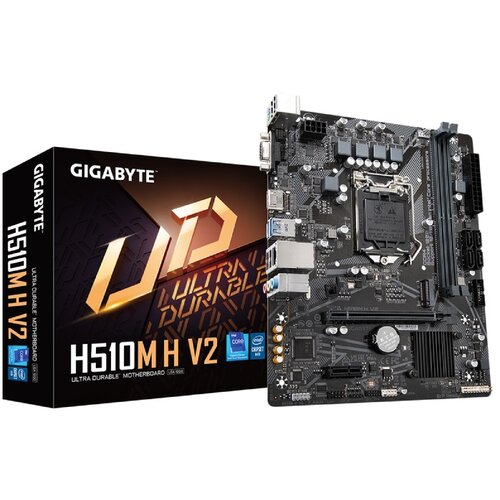

Gigabyte H510M H V2 Motherboard - Supports Intel Core 11th CPUs, up to 3200MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1 cijene

Technical details
Warranty period: 3 year(s)

Processor
Processor socket: LGA 1200 (Socket H5)
Compatible processor series: Intel Core i5, Intel Celeron, Intel Core i7, Intel Core i9, Intel Core i3, Intel Pentium
Processor manufacturer: Intel
Supported processor sockets: LGA 1200 (Socket H5)

Graphics
Number of displays supported: 2
Maximum resolution: 4096 x 2304 pixels
HDCP: Yes
Parallel processing technology support: Not supported
DirectX version: 12.0

Features
Windows operating systems supported: Windows 10 x64
Motherboard chipset family: Intel
PC health monitoring: Voltage, Fan, Temperature
Product colour: Bronze
Audio output channels: 7.1 channels
Motherboard chipset: Intel H510 Express
Motherboard form factor: micro ATX

Memory
Number of memory slots: 2
Memory channels: Dualchannel
Supported memory types: DDR4SDRAM
Memory slots type: DIMM
Supported memory clock speeds: 3200 MHz, 2400, 2133, 2933, 3000, 2666
Maximum internal memory: 64 GB
Unbuffered memory: Yes

Weight & dimensions
Height: 35 mm
Width: 226 mm
Depth: 185 mm

Network
Ethernet interface type: Gigabit Ethernet
WiFi: No
Ethernet LAN: Yes

Internal I/O
Front panel connector: Yes
12V power connector: Yes
TPM connector: Yes
RGB LED pin header: Yes
CPU fan connector: Yes
ATX Power connector (24pin): Yes
Number of SATA III connectors: 4
EPS power connector (8pin): Yes
Number of chassis fan connectors: 2
Front panel audio connector: Yes
Serial port headers: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 2.0 connectors: 2

BIOS
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
BIOS type: UEFI AMI

Packaging data
Package height: 52 mm
Package depth: 235 mm
Package width: 265 mm
Package weight: 756 g

Packaging content
Batteries included: Yes
Drivers included: Yes
Cables included: SATA

Storage controllers
Number of storage drives supported: 5
Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III
Supported storage drive types: HDD & SSD

Rear panel I/O ports
VGA (DSub) ports quantity: 1
Microphone in: Yes
PS/2 ports quantity: 2
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 2
HDMI version: 1.4
Ethernet LAN (RJ45) ports: 1
USB connector type: USB TypeA
USB 2.0 ports quantity: 4

Expansion slots
PCI Express x1 slots: 2
PCI Express x16 slots: 1
Number of M.2 (M) slots: 1

Battery
Lithium weight per battery: 0.07 g
Battery weight: 3 g
Battery type: CR2032
Number of battery cells: 1
Battery technology: LithiumManganese Dioxide (LiMnO2)

Logistics data
Products per shipping (inner) case: 1 pc(s)
Country of origin: China
