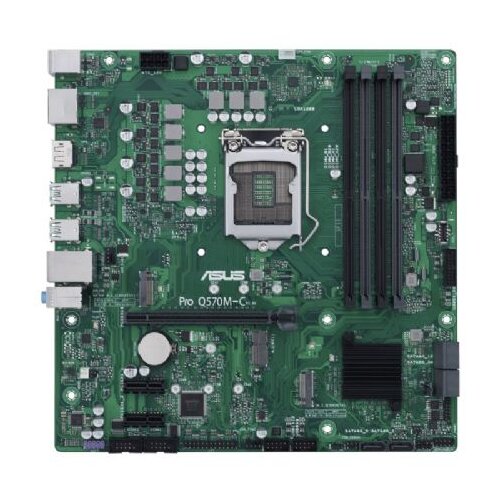

Asus PRO Q570M-C/CSM Intel Q570 LGA 1200 (Socket H5) micro ATX

Processor
Compatible processor series: Intel Core i3, Intel Core i7, Intel Core i9, Intel Core i5, Intel Celeron, Intel Pentium
Processor socket: LGA 1200 (Socket H5)
Processor manufacturer: Intel
Maximum number of SMP processors: 1

Graphics
Maximum resolution: 4096 x 2304 pixels
Parallel processing technology support: Not supported

Features
Windows operating systems supported: Windows 10 x64
Motherboard chipset: Intel Q570
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Motherboard form factor: micro ATX
Motherboard chipset family: Intel

Memory
Memory slots type: DIMM
Supported memory types: DDR4SDRAM
Number of memory slots: 4
Memory channels: Dualchannel
Supported memory clock speeds: 2400, 2800, 3200 MHz, 2666, 2133, 2933
Maximum internal memory: 128 GB
Unbuffered memory: Yes

Weight & dimensions
Height: 51 mm
Width: 244 mm
Depth: 244 mm

Network
Ethernet interface type: Gigabit Ethernet
WiFi: No
LAN controller: Intel I219V
WakeonLAN ready: Yes
Ethernet LAN: Yes

Internal I/O
Audio connector: Yes
EPS power connector (8pin): Yes
Front panel audio connector: Yes
CPU fan connector: Yes
ATX Power connector (24pin): Yes
Number of COM connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Chassis intrusion connector: Yes
Number of SATA III connectors: 6
USB 2.0 connectors: 2

BIOS
Clear CMOS jumper: Yes

Packaging content
Cables included: SATA

Storage controllers
Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports
USB 2.0 ports quantity: 2
DisplayPorts quantity: 2
Ethernet LAN (RJ45) ports: 1
HDMI ports quantity: 1
DisplayPort version: 1.4
PS/2 ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) TypeA ports quantity: 4
HDMI version: 1.4/2.0

Expansion slots
PCI Express x16 slots: 1
PCI Express x1 (Gen 3.x) slots: 2
Number of M.2 (M) slots: 2

Other features
Weight: 634 g

Logistics data
Harmonized System (HS) code: 84733020
