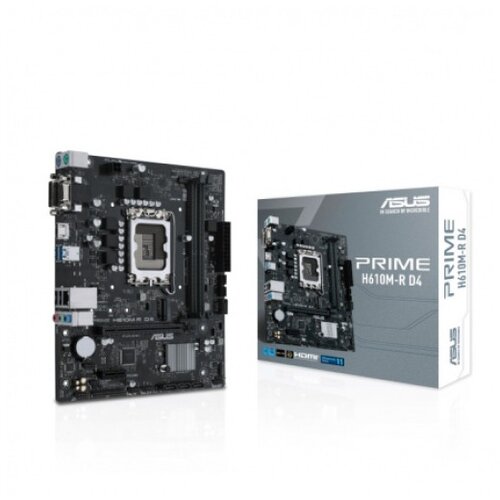

Asus 1700 AS PRIME H610M-R D4-SI

Processor
Processor manufacturer: Intel
Compatible processor series: Intel Core i3, Intel Core i7, Intel Core i9, Intel Pentium G, Intel Core i5, Intel Celeron
Processor socket: LGA 1700
Supported processor sockets: LGA 1700

Graphics
Parallel processing technology support: Not supported
Maximum resolution: 3840 x 2160 pixels

Features
Audio output channels: 7.1 channels
Motherboard chipset: Intel H610
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 10 x64, Windows 11 x64

Memory
Unbuffered memory: Yes
Supported memory clock speeds: 3000, 3200 MHz, 2666, 2133, 2400, 2800, 2933
Maximum internal memory: 64 GB
Memory slots type: DIMM
Supported memory types: DDR4SDRAM
Memory channels: Dualchannel
Number of memory slots: 2

Weight & dimensions
Depth: 193 mm
Height: 51 mm
Width: 226 mm

Network
WakeonLAN ready: Yes
Ethernet LAN: Yes
WiFi: No
Ethernet interface type: Gigabit Ethernet

Internal I/O
ATX Power connector (24pin): Yes
Front panel audio connector: Yes
Number of SATA III connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
CPU fan connector: Yes
USB 2.0 connectors: 2
TPM connector: Yes
Audio connector: Yes
Number of COM connectors: 1
Number of chassis fan connectors: 1
12V power connector: Yes
Chassis intrusion connector: Yes

BIOS
Clear CMOS jumper: Yes
BIOS type: UEFI AMI

Packaging content
Drivers included: Yes
Cables included: SATA

Storage controllers
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
Number of storage drives supported: 5

Rear panel I/O ports
USB connector type: USB TypeA
USB 2.0 ports quantity: 2
Ethernet LAN (RJ45) ports: 1
HDMI version: 2.1
DVID ports quantity: 1
Microphone in: Yes
Headphone outputs: 3
PS/2 ports quantity: 2
VGA (DSub) ports quantity: 1
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 2

Expansion slots
PCI Express x1 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 1
PCI Express x16 (Gen 4.x) slots: 1

Other features
Weight: 842 g

Logistics data
Harmonized System (HS) code: 84733020
