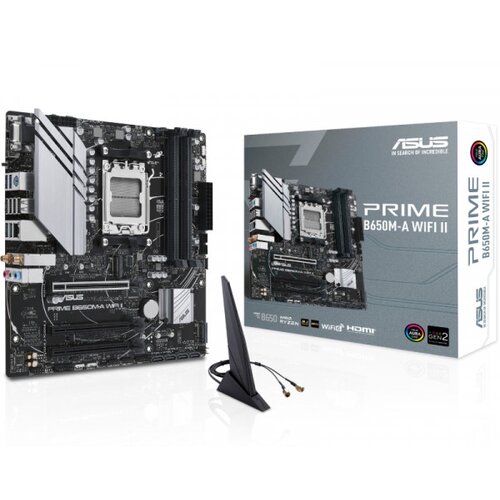

Asus Matična ploča PRIME B650M-A WIFI II AM5 B650 USB

Processor
Processor socket: Socket AM5
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 7

Features
Power source type: ATX
Windows operating systems supported: Windows 11, Windows 10
Audio output channels: 7.1 channels
Motherboard chipset family: AMD
Motherboard chipset: AMD B650
Motherboard form factor: micro ATX

Memory
Unbuffered memory: Yes
Supported memory clock speeds: 5000, 5200, 6200, 6400, 5800, 5400 MHz, 6000, 4800, 5600
Maximum internal memory: 128 GB
Memory channels: Dualchannel
Number of memory slots: 4
Supported memory types: DDR5SDRAM
Memory slots type: DIMM

Weight & dimensions
Width: 244 mm
Depth: 244 mm

Network
Bluetooth: Yes
WiFi: Yes
Top WiFi standard: WiFi 6 (802.11ax)
Ethernet interface type: 2.5 Gigabit Ethernet
WiFi standards: 802.11a, WiFi 6 (802.11ax), WiFi 4 (802.11n), WiFi 5 (802.11ac), 802.11b, 802.11g
Bluetooth version: 5.2
Ethernet LAN: Yes

Internal I/O
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Front panel connector: Yes
CPU fan connector: Yes
Number of COM connectors: 1
S/PDIF out connector: Yes
Number of SATA connectors: 4
Peripheral (Molex) power connectors (4pin): 4
ATX Power connector (24pin): Yes
EPS power connector (8pin): Yes
Power fan connector: Yes
Number of chassis fan connectors: 3
Audio connector: Yes
TPM connector: Yes
12V power connector: Yes
RGB LED pin header: Yes
Total number of SATA connectors: 4

BIOS
BIOS type: UEFI AMI
Clear CMOS button: Yes
Bundled software: ASUS Exclusive Software Armoury Crate Aura Creator Aura Sync Fan Xpert 2+ Power Saving AI Suite 3 TurboV EVO DIGI+ VRM PC Cleaner ASUS CPUZ MyASUS Norton Antivirus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode

Packaging content
Cables included: SATA

Storage controllers
RAID levels: 0, 10, 1
RAID support: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA
Number of storage drives supported: 2
Number of HDDs supported: 4

Rear panel I/O ports
USB connector type: USB TypeA
USB 2.0 ports quantity: 4
Ethernet LAN (RJ45) ports: 1
DisplayPorts quantity: 1
Headphone outputs: 1
HDMI ports quantity: 1
VGA (DSub) ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) TypeA ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 2
Microphone in: Yes
Linein: Yes

Expansion slots
PCI Express x16 (Gen 4.x) slots: 3
