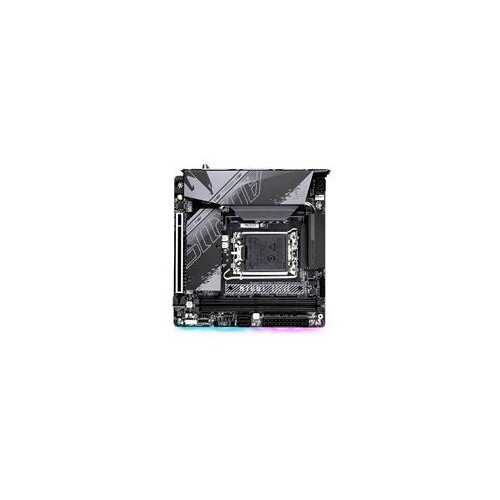

Gigabyte B760I AORUS PRO Motherboard - Supports Intel Core 14th Gen CPUs, 8+1+1 Phases Digital VRM, up to 8000MHz DDR5 (OC), 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2

Technical details
Warranty period: 3 year(s)

Processor
Maximum internal memory supported by processor: 96 GB
Processor manufacturer: Intel
Processor socket: LGA 1700
Compatible processor series: Intel Core i7, Intel Core i9, Intel Pentium Gold, Intel Core i3, Intel Core i5, Intel Celeron
Supported processor sockets: LGA 1700

Graphics
HDCP: Yes
DirectX version: 12.0
Parallel processing technology support: Not supported
Maximum resolution: 4096 x 2304 pixels

Features
Motherboard chipset: Intel B760 Express
Motherboard chipset family: Intel
Audio output channels: 7.1 channels
Motherboard form factor: mini ITX
PC health monitoring: Fan, Water cooling, Temperature, Voltage
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Component for: PC
Product colour: Black

Memory
Supported memory clock speed (max): 8000 MHz
ECC: Yes
Number of memory slots: 2
Memory slots type: DIMM
Supported memory types: DDR5SDRAM
Supported memory clock speeds: 6400, 7600, 7800, 6000, 5200, 7400, 7000, 4000, 4800, 6800, 6200, 6600, 5800, 5400, 5600, 7200, 8000 MHz
Supported memory module capacities: 8GB, 16GB, 32GB, 48GB, 1GB, 12GB, 2GB, 4GB
Maximum internal memory: 96 GB
NonECC: Yes
Memory channels: Dualchannel
Unbuffered memory: Yes

Weight & dimensions
Width: 170 mm
Height: 35 mm
Depth: 170 mm

Network
Ethernet interface type: 2.5 Gigabit Ethernet
WiFi: Yes
Ethernet LAN: Yes
WiFi standards: WiFi 6E (802.11ax), WiFi 5 (802.11ac), 802.11g, 802.11b, 802.11a, WiFi 6 (802.11ax), WiFi 4 (802.11n)
Bluetooth: Yes
Bluetooth version: 5.3
Top WiFi standard: WiFi 6E (802.11ax)

Internal I/O
RGB LED pin header: Yes
12V power connector: Yes
Audio connector: Yes
Chassis intrusion connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
CPU fan connector: Yes
Front panel audio connector: Yes
EPS power connector (8pin): Yes
Total number of SATA connectors: 2
Front panel connector: Yes
Number of SATA III connectors: 2
USB 2.0 connectors: 1
ATX Power connector (24pin): Yes

BIOS
System Management BIOS (SMBIOS) version: 2.7
Desktop Management Interface (DMI) version: 2.7
BIOS memory size: 256 Mbit
Clear CMOS jumper: Yes
BIOS type: UEFI AMI
ACPI version: 5.0

Packaging data
Package weight: 1.49 kg
Package height: 95 mm
Package width: 235 mm
Package depth: 227 mm
Bundled software: Norton Internet Security

Packaging content
Cables included: SATA

Storage controllers
Number of HDDs supported: 2
Number of storage drives supported: 4
Supported storage drive types: HDD & SSD
RAID support: Yes
RAID levels: 0, 1
Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports
Headphone outputs: 2
WiFiAP antenna jack: 2
Microphone in: Yes
USB 3.2 Gen 2 (3.1 Gen 2) TypeA ports quantity: 1
DisplayPorts quantity: 1
HDMI ports quantity: 1
USB connector type: USB TypeA, USB TypeC
USB 2.0 ports quantity: 2
HDMI version: 2.0
DisplayPort version: 1.2
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 4
Ethernet LAN (RJ45) ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) TypeC ports quantity: 1
S/PDIF out port: Yes

Expansion slots
PCI Express x16 slots: 1
Number of M.2 (M) slots: 2

Battery
Battery technology: LithiumManganese Dioxide (LiMnO2)
Number of battery cells: 1
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Battery type: CR2032

Logistics data
Products per shipping (inner) case: 1 pc(s)
Country of origin: China
