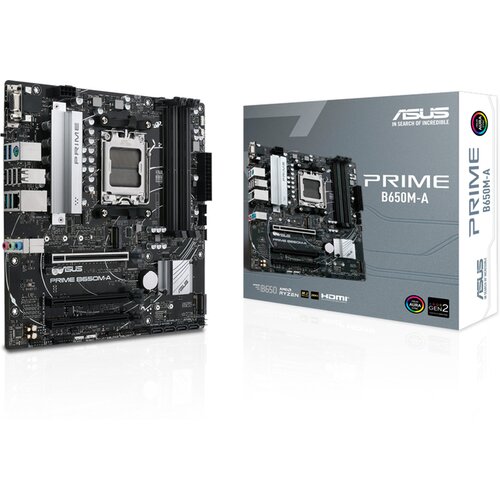

Asus PRIME B650M-A AMD B650 Socket AM5 micro ATX

Processor
Compatible processor series: AMD Ryzen 7
Processor socket: Socket AM5
Processor manufacturer: AMD

Graphics
Parallel processing technology support: Not supported

Features
Motherboard chipset family: AMD
Motherboard chipset: AMD B650
Motherboard form factor: micro ATX
Windows operating systems supported: Windows 11, Windows 10 x64
Audio output channels: 7.1 channels

Memory
Unbuffered memory: Yes
Supported memory clock speeds: 4800, 5000, 6000, 5800, 5400 MHz, 5200, 6400, 6200, 5600
Maximum internal memory: 128 GB
Memory slots type: DIMM
Memory channels: Dualchannel
Number of memory slots: 4
Supported memory types: DDR5SDRAM

Weight & dimensions
Width: 244 mm
Depth: 244 mm

Network
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
WiFi: No

Internal I/O
S/PDIF out connector: Yes
CPU fan connector: Yes
Audio connector: Yes
TPM connector: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of COM connectors: 1
EPS power connector (8pin): Yes
12V power connector: Yes
Front panel audio connector: Yes
Number of chassis fan connectors: 3
ATX Power connector (24pin): Yes
RGB LED pin header: Yes
Number of SATA III connectors: 8

BIOS
BIOS type: UEFI AMI
Clear CMOS button: Yes

Packaging data
Package depth: 265 mm
Package weight: 1.32 kg
Package height: 71 mm
Package width: 280 mm

Packaging content
Cables included: SATA

Storage controllers
RAID levels: 1, 0, 10
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
Number of storage drives supported: 10

Rear panel I/O ports
DisplayPorts quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 2
Linein: Yes
Microphone in: Yes
Ethernet LAN (RJ45) ports: 1
VGA (DSub) ports quantity: 1
PS/2 ports quantity: 1
HDMI ports quantity: 1
USB 2.0 ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) TypeA ports quantity: 2
Headphone outputs: 1

Expansion slots
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 4.x) slots: 3
