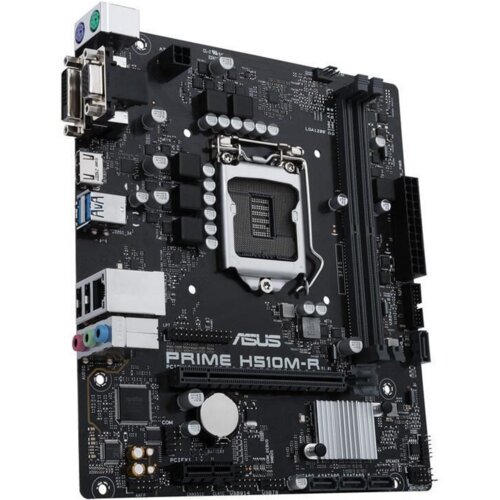

Asus Matična ploča PRIME H510M-R R2.0-SI LGA1200 H470 USB3.2 GEN1

Processor
Compatible processor series: Intel Core i7, Intel Core i9, Intel Pentium Gold, Intel Core i5, Intel Celeron, Intel Core i3
Processor socket: LGA 1200 (Socket H5)
Processor manufacturer: Intel

Graphics
Parallel processing technology support: Not supported

Features
Windows operating systems supported: Windows 10 x64
Component for: PC
Audio output channels: 7.1 channels
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Motherboard chipset: Intel H470

Memory
Memory channels: Dualchannel
Number of memory slots: 2
Supported memory types: DDR4SDRAM
Memory slots type: DIMM
Unbuffered memory: Yes
Supported memory clock speeds: 3000, 2133, 2400, 2800, 2933, 3200, 2666
NonECC: Yes
Maximum internal memory: 64 GB

Weight & dimensions
Depth: 188 mm
Width: 218 mm

Network
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
WiFi: No
Ethernet LAN: Yes

Internal I/O
TPM connector: Yes
12V power connector: Yes
Number of chassis fan connectors: 1
Number of COM connectors: 1
Chassis intrusion connector: Yes
Front panel audio connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 2.0 connectors: 2
ATX Power connector (24pin): Yes
Number of SATA III connectors: 4
CPU fan connector: Yes

BIOS
BIOS type: UEFI AMI
BIOS memory size: 128 Mbit

Storage controllers
Number of storage drives supported: 4
Number of HDDs supported: 4
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: SATA III

Rear panel I/O ports
PS/2 ports quantity: 2
Headphone outputs: 1
Microphone in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 2
HDMI ports quantity: 1
VGA (DSub) ports quantity: 1
USB 2.0 ports quantity: 2
Ethernet LAN (RJ45) ports: 1

Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 1
