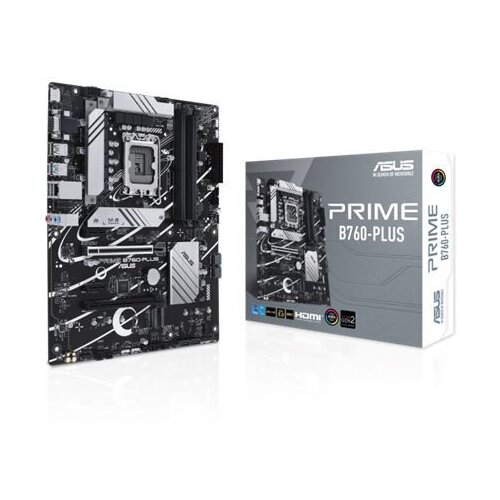

Asus Matična ploča PRIME B760-PLUS LGA1700 B760

Processor
Processor manufacturer: Intel
Compatible processor series: Intel Core i3, Intel Core i7, Intel Core i9, Intel Pentium Gold, Intel Core i5, Intel Celeron
Maximum number of SMP processors: 1
Processor socket: LGA 1700
Supported processor sockets: LGA 1700

Graphics
Parallel processing technology support: Not supported

Features
Motherboard chipset: Intel B760
Windows operating systems supported: Windows 11, Windows 10 x64
Motherboard form factor: ATX
Cooling type: Passive
Power source type: ATX
Motherboard chipset family: Intel
Audio output channels: 7.1 channels

Memory
Unbuffered memory: Yes
Supported memory types: DDR5SDRAM
Memory slots type: DIMM
Memory channels: Dualchannel
Supported memory clock speeds: 5200, 6600, 6800, 7000, 6200, 6400, 4800, 5000, 5800, 5400, 5600, 7200, 6000
Maximum internal memory: 192 GB
Number of memory slots: 4

Weight & dimensions
Depth: 244 mm
Height: 36 mm
Width: 305 mm

Network
Ethernet interface type: Fast Ethernet, 2.5 Gigabit Ethernet, Gigabit Ethernet
Ethernet LAN: Yes
WiFi: No

Internal I/O
Front panel connector: Yes
Number of SATA III connectors: 4
12V power connector: Yes
TPM connector: Yes
CPU fan connector: Yes
Number of COM connectors: 1
S/PDIF out connector: Yes
EPS power connector (8pin): Yes
Peripheral (Molex) power connectors (4pin): 1
RGB LED pin header: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Front panel audio connector: Yes
Number of chassis fan connectors: 3
Thunderbolt headers: 1
USB 2.0 connectors: 2
ATX Power connector (24pin): Yes

BIOS
BIOS type: UEFI AMI

Packaging data
Package weight: 1.2 kg
Package width: 328 mm
Package height: 53 mm
Package depth: 266 mm

Packaging content
Cables included: SATA

Storage controllers
Number of storage drives supported: 7
RAID levels: 10, 1, 5, 0
Supported storage drive types: HDD & SSD
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4

Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) TypeA ports quantity: 2
DisplayPort version: 1.4
HDMI version: 2.1
DisplayPorts quantity: 1
Ethernet LAN (RJ45) ports: 1
Headphone outputs: 1
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 1
USB 3.2 Gen 2x2 TypeC ports quantity: 1
VGA (DSub) ports quantity: 1
USB 2.0 ports quantity: 2
Linein: Yes

Expansion slots
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 2
Number of M.2 (M) slots: 3

Other features
Weight: 760 g
