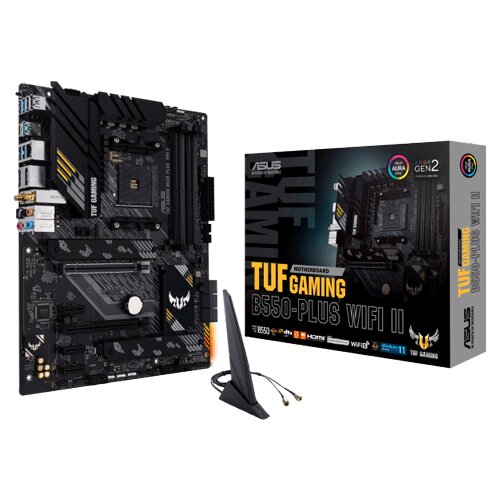

Asus TUF GAMING B550-PLUS WIFI II AMD B550 Socket AM4 ATX

Processor
Supported processor sockets: Socket AM4
Compatible processor series: 3rd Generation AMD Ryzen 9, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen 7
Processor manufacturer: AMD
Processor socket: Socket AM4

Graphics
Parallel processing technology support: Not supported
Onboard graphics card: No
Number of displays supported: 2

Features
Windows operating systems supported: Windows 11, Windows 10
Audio output channels: 7.1 channels
Motherboard form factor: ATX
Motherboard chipset: AMD B550
Product colour: Black
Motherboard chipset family: AMD

Memory
Supported memory clock speeds: 3733, 4400, 4866, 4133 MHz, 4000, 4800, 3400, 3866, 3333, 4466, 3000, 3200 MHz, 2666, 4266, 2933, 3600, 3466, 2400, 2800, 4333, 4600, 2133, 4200
Unbuffered memory: Yes
Maximum internal memory: 128 GB
Memory channels: Dualchannel
Number of memory slots: 4
Supported memory types: DDR4SDRAM
Memory slots type: DIMM

Weight & dimensions
Height: 75 mm
Depth: 244 mm
Width: 305 mm

Network
Bluetooth: Yes
Bluetooth version: 5.2
WiFi: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Top WiFi standard: WiFi 6 (802.11ax)
WiFi standards: 802.11a, WiFi 6 (802.11ax), WiFi 5 (802.11ac), 802.11g, WiFi 4 (802.11n), 802.11b
Ethernet LAN: Yes

Internal I/O
EPS power connector (8pin): Yes
USB 2.0 connectors: 2
Front panel audio connector: Yes
Number of chassis fan connectors: 3
CPU fan connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 6
Number of COM connectors: 1
Thunderbolt headers: 1
ATX Power connector (24pin): Yes
RGB LED pin header: Yes
TPM connector: Yes

BIOS
BIOS type: UEFI AMI

Packaging content
Drivers included: Yes
Cables included: SATA

Storage controllers
RAID support: Yes
RAID levels: 1, 0, 10
Supported storage drive interfaces: M.2, SATA
Supported storage drive types: HDD & SSD

Rear panel I/O ports
USB connector type: USB TypeA, USB TypeC
DisplayPorts quantity: 1
S/PDIF out port: Yes
USB 2.0 ports quantity: 2
Ethernet LAN (RJ45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) TypeA ports quantity: 1
Headphone outputs: 1
Microphone in: Yes
Linein: Yes
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) TypeC ports quantity: 1

Expansion slots
PCI Express x1 (Gen 3.x) slots: 3
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
Packaging content: 2 x SATA 6Gb/s cables 1 x ASUS WiFi moving antennas 1 x I/O Shield 1 x M.2 Rubber package 1 x M.2 SSD screw package 1 x TUF Gaming sticker 1 x Support DVD 1 x TUF Certification card 1 x User guide

Other features
Weight: 945 g

Logistics data
Harmonized System (HS) code: 84733020
