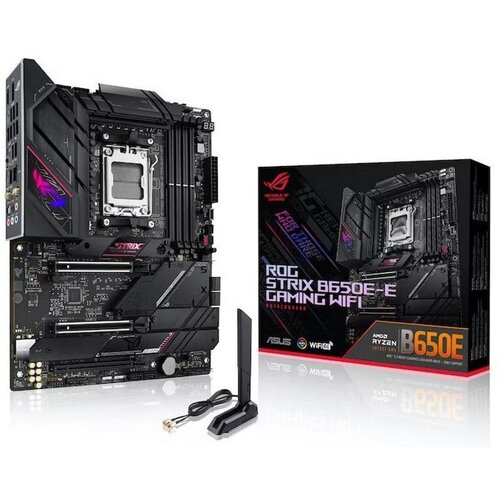

Asus ROG STRIX B650E-E GAMING WIFI AMD B650 Socket AM5 ATX

Processor
Processor socket: Socket AM5
Processor manufacturer: AMD
Supported processor sockets: Socket AM5
Compatible processor series: AMD Ryzen 3, AMD Ryzen 9 7th Gen, AMD Ryzen 7

Graphics
Parallel processing technology support: Not supported

Features
Audio output channels: 7.1 channels
Motherboard form factor: ATX
Audio chip: Realtek ALC4080
Windows operating systems supported: Windows 10, Windows 11 x64
Power source type: ATX
Motherboard chipset family: AMD
Motherboard chipset: AMD B650

Memory
Number of memory slots: 4
Memory slots type: DIMM
Supported memory types: DDR5SDRAM
Supported memory clock speed (max): 6400 MHz
Supported memory clock speeds: 5600, 4800, 5000, 5200, 6400, 6200, 5800, 5400, 6000
Maximum internal memory: 128 GB
Unbuffered memory: Yes
Memory channels: Dualchannel

Weight & dimensions
Depth: 244 mm
Width: 305 mm

Network
WiFi: Yes
Bluetooth version: 5.2
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Bluetooth: Yes
WiFi standards: WiFi 5 (802.11ac), WiFi 4 (802.11n), 802.11b, WiFi 6E (802.11ax), 802.11g, 802.11a, WiFi 6 (802.11ax)
Top WiFi standard: WiFi 6E (802.11ax)

Internal I/O
12V power connector: Yes
RGB LED pin header: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
CPU fan connector: Yes
Number of chassis fan connectors: 5
Number of SATA III connectors: 4
Thunderbolt headers: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
USB 2.0 connectors: 2
Front panel audio connector: Yes
EPS power connector (8pin): Yes
ATX Power connector (24pin): Yes

BIOS
Clear CMOS button: Yes
BIOS type: UEFI AMI

Packaging data
Package width: 343 mm
Package depth: 273 mm
Package weight: 2.44 kg
Package height: 77 mm

Packaging content
Cables included: SATA
User guide: Yes

Storage controllers
RAID levels: 1, 10, 0
Supported storage drive types: HDD & SSD
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports
Linein: Yes
Headphone outputs: 1
USB 3.2 Gen 2x2 TypeC ports quantity: 1
Microphone in: Yes
USB 3.2 Gen 2 (3.1 Gen 2) TypeA ports quantity: 6
Ethernet LAN (RJ45) ports: 1
DisplayPort version: 1.4
HDMI ports quantity: 1
USB 2.0 ports quantity: 4
S/PDIF out port: Yes
HDMI version: 2.1
DisplayPorts quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) TypeC ports quantity: 1

Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 2
Number of M.2 (M) slots: 4

Other features
BacktoBIOS button: Yes
