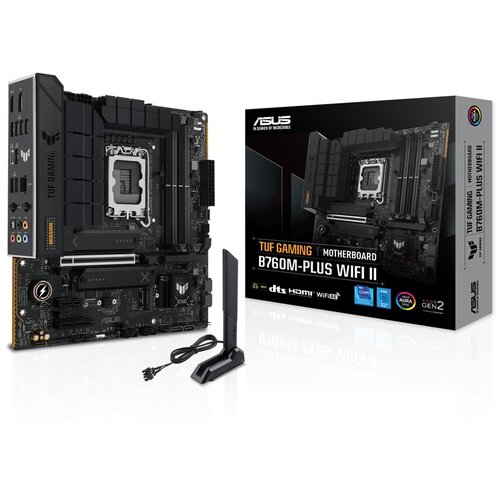

Asus TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 micro ATX

Processor
Processor manufacturer: Intel
Compatible processor series: Intel Core i3, Intel Core i7, Intel Core i9, Intel Pentium Gold, Intel Core i5, Intel Celeron
Supported processor sockets: LGA 1700
Processor socket: LGA 1700

Graphics
Parallel processing technology support: Not supported

Features
Motherboard chipset: Intel B760
Product colour: Black
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 11, Windows 10
Power source type: ATX
Motherboard form factor: micro ATX
Cooling type: Passive
Motherboard chipset family: Intel

Memory
Supported memory clock speeds: 6800, 6000, 6600, 6400, 7800, 5000, 6200, 7000, 5600, 5800, 5400, 4800, 5200
Unbuffered memory: Yes
Maximum internal memory: 192 GB
Supported memory clock speed (max): 7800 MHz
Memory channels: Dualchannel
Memory slots type: DIMM
Number of memory slots: 4
Supported memory types: DDR5SDRAM

Weight & dimensions
Width: 244 mm
Depth: 244 mm

Network
Bluetooth: Yes
WiFi standards: WiFi 6E (802.11ax)
Top WiFi standard: WiFi 6E (802.11ax)
WiFi: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
Bluetooth version: 5.3

Internal I/O
ATX Power connector (24pin): Yes
Thunderbolt headers: 1
EPS power connector (8pin): Yes
CPU fan connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Chassis intrusion connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 2.0 connectors: 3
Number of chassis fan connectors: 3
Number of SATA III connectors: 4
RGB LED pin header: Yes
Front panel audio connector: Yes
12V power connector: Yes

BIOS
BIOS type: UEFI AMI

Packaging data
Package width: 275 mm
Package weight: 1.65 kg
Package height: 67.5 mm
Package depth: 275 mm

Packaging content
User guide: Yes
Cables included: SATA

Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
Number of HDDs supported: 4
RAID levels: 5, 10, 0, 1
Number of storage drives supported: 7

Rear panel I/O ports
S/PDIF out port: Yes
USB 3.2 Gen 2 (3.1 Gen 2) TypeA ports quantity: 1
DisplayPorts quantity: 1
DisplayPort version: 1.4
HDMI version: 2.1
USB 3.2 Gen 2 (3.1 Gen 2) TypeC ports quantity: 1
HDMI ports quantity: 1
WiFiAP antenna jack: 2
Headphone outputs: 1
Microphone in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 2
USB 2.0 ports quantity: 4
Linein: Yes
Ethernet LAN (RJ45) ports: 1

Expansion slots
PCI Express x4 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 3
PCI Express x1 (Gen 3.x) slots: 1

Other features
Weight: 982 g
