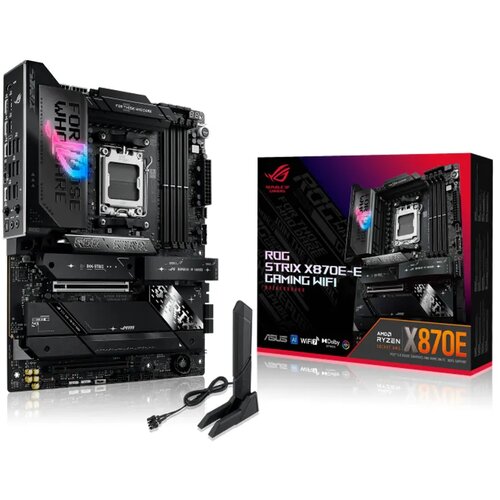

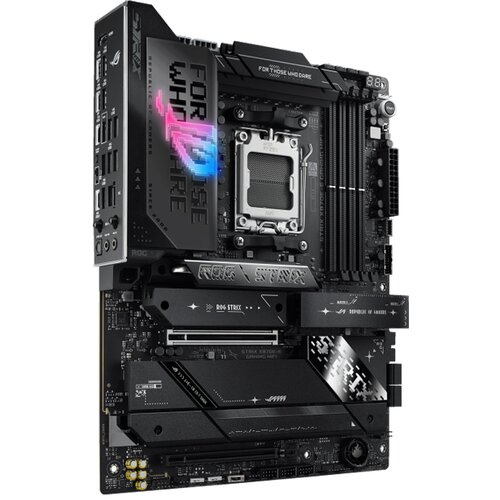

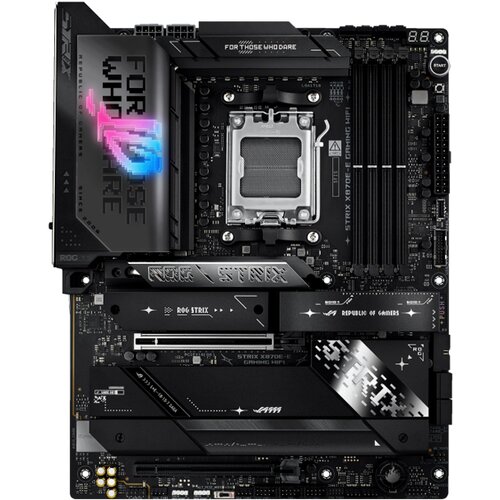

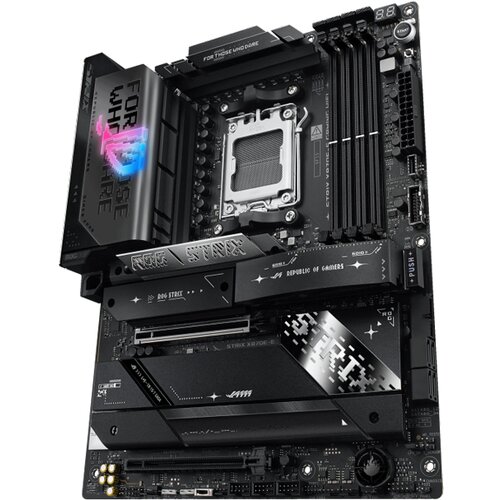

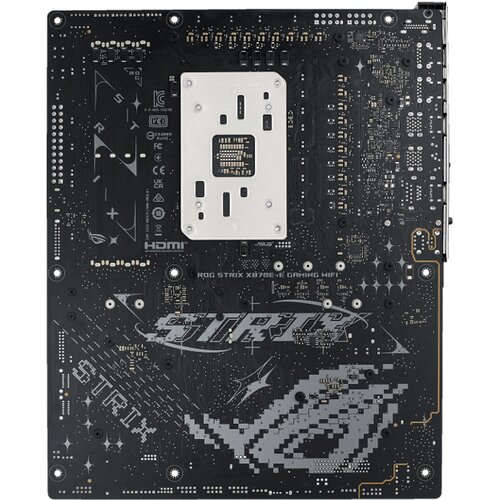

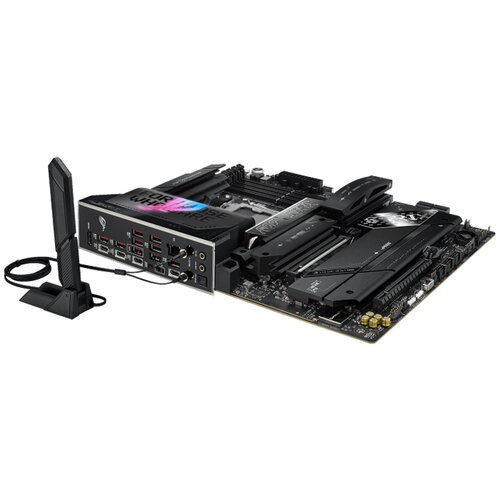

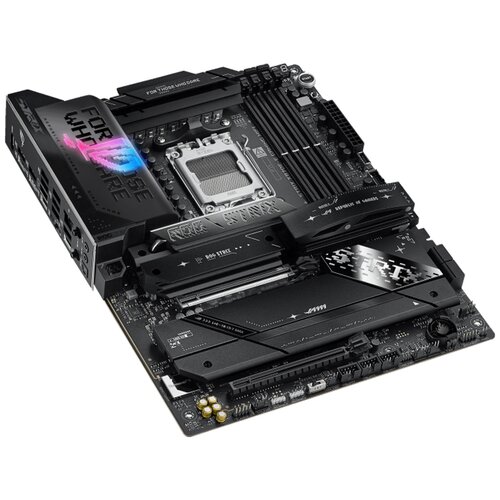

Asus ROG STRIX X870E-E GAMING WIFI AMD X870E Socket AM5 ATX

Processor
Supported processor sockets: Socket AM5
Processor manufacturer: AMD
Processor socket: Socket AM5

Graphics
Parallel processing technology support: Not supported
Onboard graphics card: No

Features
Windows operating systems supported: Windows 11 x64
Product colour: Black
Audio chip: Realtek ALC4080
Motherboard form factor: ATX
Motherboard chipset: AMD X870E
Motherboard chipset family: AMD
Audio output channels: 7.1 channels

Memory
Maximum internal memory: 192 GB
Unbuffered memory: Yes
Memory channels: Dualchannel
Number of memory slots: 4
Memory slots type: DIMM
Supported memory types: DDR5SDRAM

Weight & dimensions
Depth: 244 mm
Width: 305 mm
Height: 50 mm

Network
Bluetooth: Yes
Top WiFi standard: WiFi 7 (802.11be)
Bluetooth version: 5.4
WiFi standards: WiFi 7 (802.11be)
Ethernet LAN: Yes
Ethernet interface type: 5 Gigabit Ethernet
WiFi: Yes

Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 2.0 connectors: 3
Front panel audio connector: Yes
CPU fan connector: Yes
Number of chassis fan connectors: 5
Number of SATA III connectors: 4
ATX Power connector (24pin): Yes
12V power connector: Yes
USB 3.2 Gen 2x2 connectors: 1

BIOS
Clear CMOS button: Yes
BIOS type: UEFI AMI

Packaging data
Package weight: 3.02 kg
Package height: 87 mm
Package depth: 281 mm
Package width: 365 mm

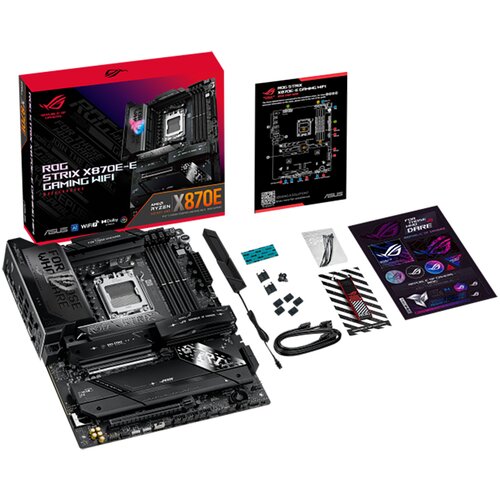

Packaging content
Cables included: SATA

Storage controllers
RAID levels: 10, 0, 1, 5
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
Number of HDDs supported: 4
Number of storage drives supported: 9

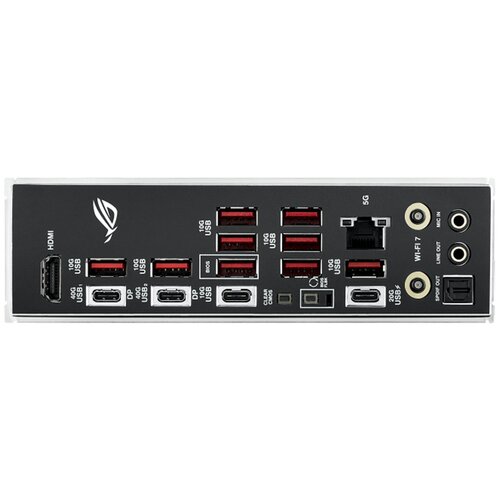

Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) TypeA ports quantity: 9
S/PDIF out port: Yes
Ethernet LAN (RJ45) ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) TypeC ports quantity: 1
Headphone outputs: 1
WiFiAP antenna jack: 1
HDMI ports quantity: 1
Microphone in: Yes
USB 3.2 Gen 2x2 TypeC ports quantity: 1
USB4 Gen 2x2 ports quantity: 2

Expansion slots
Number of M.2 (M) slots: 5
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1

Other features
Weight: 2.06 kg
