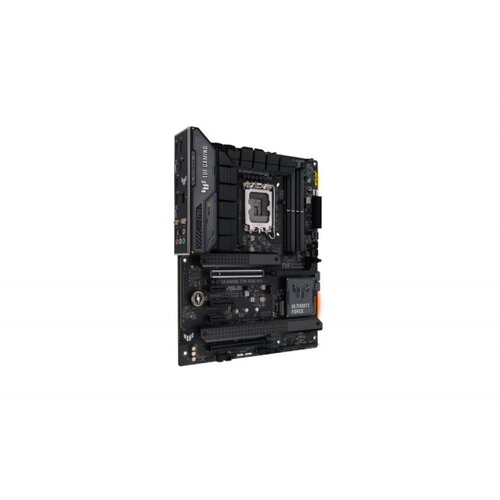

Asus Matična ploča TUF GAMING Z790-PLUS WIFI LGA1700

Processor
Processor manufacturer: Intel
Compatible processor series: Intel Core i7, Intel Core i9, Intel Pentium Gold, Intel Core i3, Intel Core i5, Intel Celeron
Supported processor sockets: LGA 1700
Processor socket: LGA 1700

Graphics
Parallel processing technology support: Not supported

Features
Motherboard chipset: Intel Z790
Motherboard chipset family: Intel
Audio chip: Realtek S1220A
Audio output channels: 7.1 channels
Power source type: ATX
Motherboard form factor: ATX
Windows operating systems supported: Windows 11, Windows 10

Memory
Supported memory clock speeds: 4800, 6600, 6000, 6200, 5000, 6800, 6400, 5600, 7200, 7000, 5800, 5400, 5200
Maximum internal memory: 128 GB
Unbuffered memory: Yes
Memory channels: Dualchannel
Supported memory types: DDR5SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Supported memory clock speed (max): 7200 MHz

Weight & dimensions
Width: 305 mm
Depth: 244 mm

Network
Bluetooth: Yes
WiFi standards: WiFi 5 (802.11ac), 802.11a, WiFi 6 (802.11ax), 802.11g, WiFi 4 (802.11n), 802.11b
Top WiFi standard: WiFi 6 (802.11ax)
WiFi: Yes
Bluetooth version: 5.3
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes

Internal I/O
USB 2.0 connectors: 2
Number of SATA III connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Thunderbolt headers: 1
Front panel audio connector: Yes
CPU fan connector: Yes
Number of chassis fan connectors: 4
EPS power connector (8pin): Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
ATX Power connector (24pin): Yes
Number of COM connectors: 1
12V power connector: Yes
RGB LED pin header: Yes

BIOS
BIOS type: UEFI AMI

Packaging content
Cables included: SATA
User guide: Yes

Storage controllers
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
RAID levels: 10, 0, 5, 1

Rear panel I/O ports
DisplayPorts quantity: 1
DisplayPort version: 1.4
S/PDIF out port: Yes
Ethernet LAN (RJ45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) TypeC ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) TypeA ports quantity: 2
Microphone in: Yes
WiFiAP antenna jack: 2
Linein: Yes
Headphone outputs: 1
USB 3.2 Gen 2x2 TypeC ports quantity: 1

Expansion slots
PCI Express x1 (Gen 3.x) slots: 2
Number of M.2 (M) slots: 4
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x4 (Gen 4.x) slots: 1
