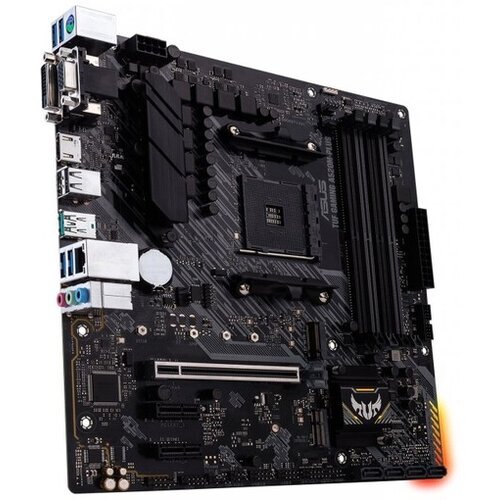

Asus TUF GAMING A520M-PLUS II AMD A520 Socket AM4 micro ATX

Processor
Compatible processor series: 3rd Generation AMD Ryzen 9, AMD Ryzen 3, AMD Ryzen 7, AMD Ryzen 5, AMD Ryzen 9 5th Gen
Processor manufacturer: AMD
Processor socket: Socket AM4
Supported processor sockets: Socket AM4

Graphics
Maximum resolution: 3840 x 2160 pixels
Parallel processing technology support: Not supported

Features
Audio chip: Realtek ALC887 / Realtek ALC897
Motherboard chipset family: AMD
Motherboard chipset: AMD A520
Audio output channels: 7.1 channels
Motherboard form factor: micro ATX
Windows operating systems supported: Windows 10 x64

Memory
Unbuffered memory: Yes
Maximum internal memory: 128 GB
Memory channels: Dualchannel
Supported memory types: DDR4SDRAM
Memory slots type: DIMM
Number of memory slots: 4
Supported memory clock speeds: 3600, 2133, 2400, 2800, 4133 MHz, 4000, 3200 MHz, 2666, 3866, 3333, 4466, 3000, 4266, 3466, 4600, 3733, 4400, 4800

Weight & dimensions
Depth: 244 mm
Height: 67 mm
Width: 244 mm

Network
WakeonLAN ready: Yes
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
WiFi: No

Internal I/O
ATX Power connector (24pin): Yes
S/PDIF out connector: Yes
USB 2.0 connectors: 2
Front panel audio connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
Number of COM connectors: 1
EPS power connector (8pin): Yes
TPM connector: Yes
RGB LED pin header: Yes
CPU fan connector: Yes
Number of chassis fan connectors: 2
12V power connector: Yes

BIOS
Clear CMOS jumper: Yes
BIOS type: UEFI AMI

Packaging content
Drivers included: Yes
Cables included: SATA

Storage controllers
RAID levels: 10, 1, 0
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III
Number of storage drives supported: 5

Rear panel I/O ports
DisplayPort version: 1.2
USB 2.0 ports quantity: 2
USB connector type: USB TypeA
DisplayPorts quantity: 1
Ethernet LAN (RJ45) ports: 1
HDMI version: 2.1
Headphone outputs: 3
PS/2 ports quantity: 1
Microphone in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 4
HDMI ports quantity: 1
VGA (DSub) ports quantity: 1

Expansion slots
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 1
PCI Express x1 (Gen 3.x) slots: 2

Other features
Weight: 900 g

Logistics data
Harmonized System (HS) code: 84733020
