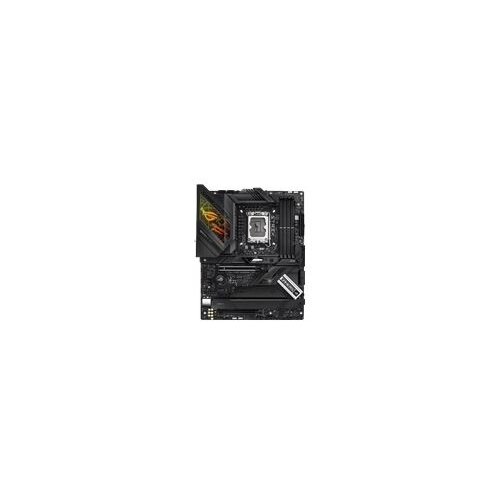

Asus Matična ploča ROG STRIX Z790-H GAMING WIFI

Processor
Processor socket: LGA 1700
Compatible processor series: Intel Core i7, Intel Core i9, Intel Pentium Gold, Intel Core i5, Intel Celeron, Intel Core i3
Processor manufacturer: Intel
Maximum number of SMP processors: 1

Graphics
Onboard graphics card: No
Compatible operating systems: Windows 11, Windows 10 64bit

Features
Component for: PC
Windows operating systems supported: Windows 11, Windows 10
Audio output channels: 7.1 channels
Power source type: ATX
Motherboard chipset: Intel Z790
Audio chip: Realtek ALC S1220A
Motherboard chipset family: Intel
Motherboard form factor: ATX

Memory
Supported memory clock speeds: 4800, 7000, 6400, 6000, 6800, 6600, 7600, 7800, 5800, 5400, 7400, 6200, 5600, 7200, 5000, 5200
Number of memory slots: 4
Unbuffered memory: Yes
Memory channels: Dualchannel
Maximum internal memory: 128 GB
Memory slots type: DIMM
Supported memory types: DDR5SDRAM
NonECC: Yes

Weight & dimensions
Width: 305 mm
Depth: 244 mm

Network
WiFi standards: WiFi 5 (802.11ac), 802.11a, WiFi 6 (802.11ax), 802.11g, WiFi 6E (802.11ax), 802.11b, WiFi 4 (802.11n)
Ethernet interface type: 2.5 Gigabit Ethernet
WiFi: Yes
Ethernet LAN: Yes
Top WiFi standard: WiFi 6E (802.11ax)
Bluetooth version: 5.3
Bluetooth: Yes

Internal I/O
Power fan connector: Yes
ATX Power connector (24pin): Yes
USB 2.0 connectors: 2
EPS power connector (8pin): Yes
Number of SATA connectors: 4
RGB LED pin header: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of chassis fan connectors: 5
CPU fan connector: Yes
Thunderbolt headers: 1
Audio connector: Yes
Front panel audio connector: Yes
12V power connector: Yes

BIOS
BIOS memory size: 256 Mbit
BIOS type: UEFI AMI

Packaging content
Cables included: SATA

Storage controllers
RAID support: Yes
Supported storage drive interfaces: M.2, SATA
RAID levels: 5, 0, 10, 1
Number of HDDs supported: 4
Number of storage drives supported: 4
Supported storage drive types: HDD & SSD

Rear panel I/O ports
USB 2.0 ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) TypeA ports quantity: 2
HDMI ports quantity: 1
S/PDIF out port: Yes
DisplayPorts quantity: 1
COM ports quantity: 1
Digital audio optical out: 5
USB connector type: USB TypeA
DisplayPort version: 1.4
HDMI version: 2.0
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) TypeC ports quantity: 1
WiFiAP antenna jack: 1
Ethernet LAN (RJ45) ports: 1
USB 3.2 Gen 2x2 TypeC ports quantity: 1

Expansion slots
Number of M.2 (M) slots: 4
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
